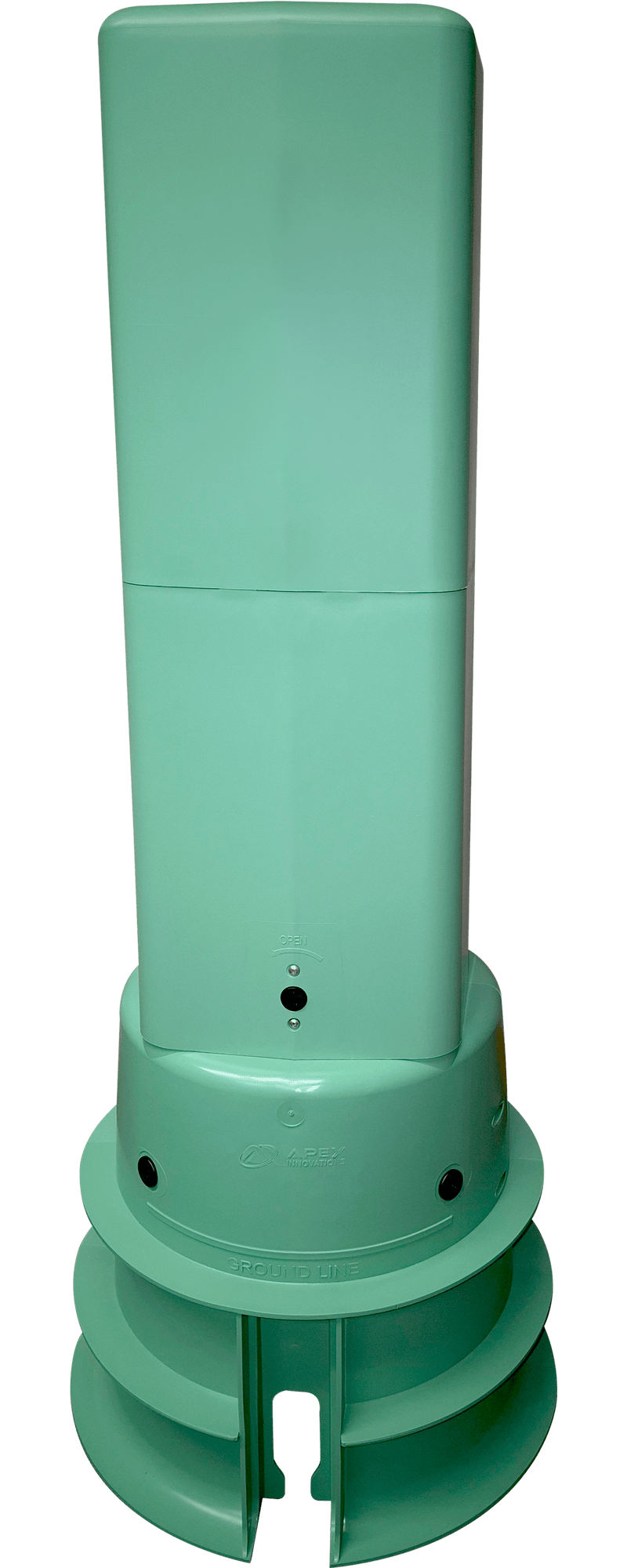

Apex 100

10-Inch

8- and 6-inch models coming soon!

Our breakthrough 10-inch pedestal is purpose-built for fast, efficient underground FTTH deployment.

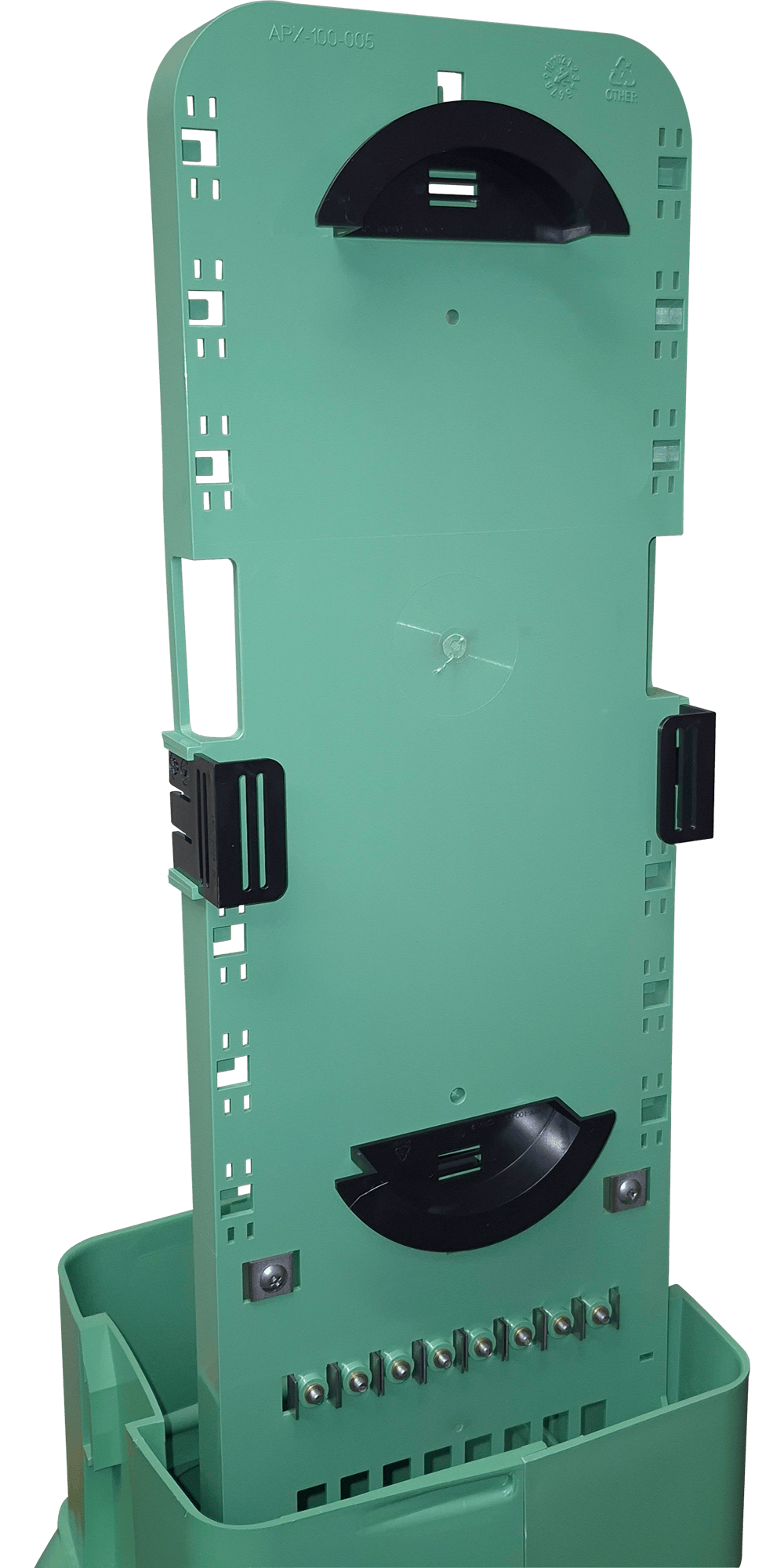

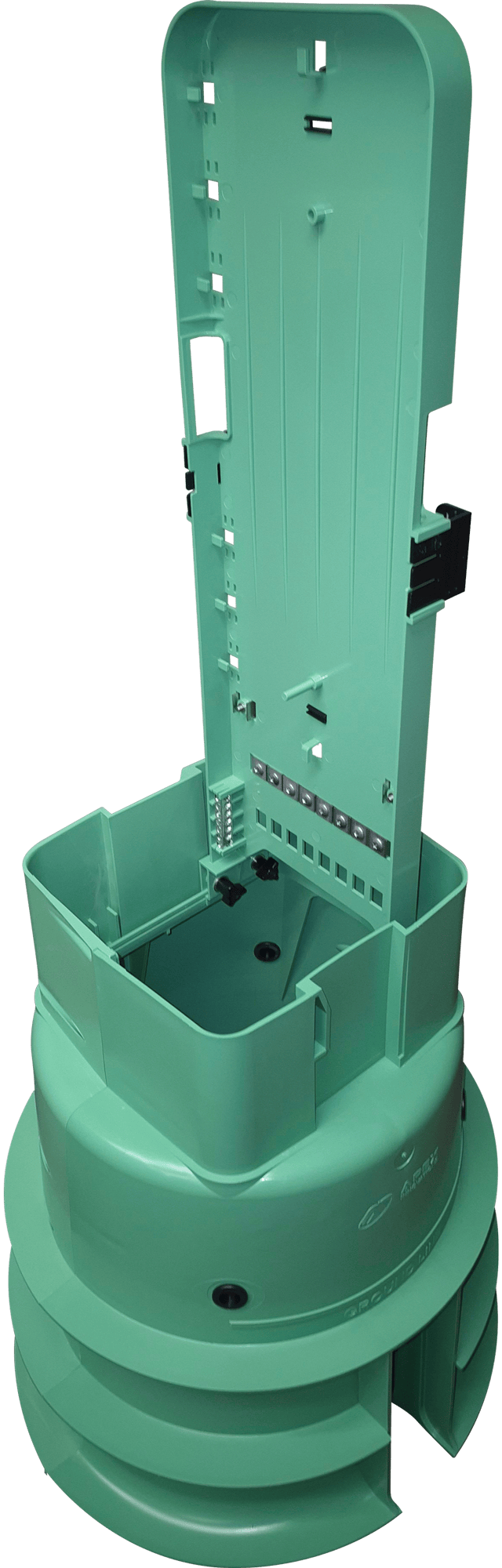

Made from durable, non-metallic thermo-plastic, the Apex 100 offers exceptional versatility and easy, hassle-free assembly in the field. A single-point self-latching hood enables quick access and installation while the 10-inch compartment simplifies cable connections.

Proudly manufactured in the USA, every component meets strict certifications with full traceability for reliable field support and quality assurance.

Backed by our agile, full-service model, we’re equipped to produce up to 400,000 units annually, delivering adaptable, cost-effective solutions for a rapidly evolving sector.

Contact sales

Key features

Specs

SKU
APEX100-10IN-PED-GR-000
Opening
10"

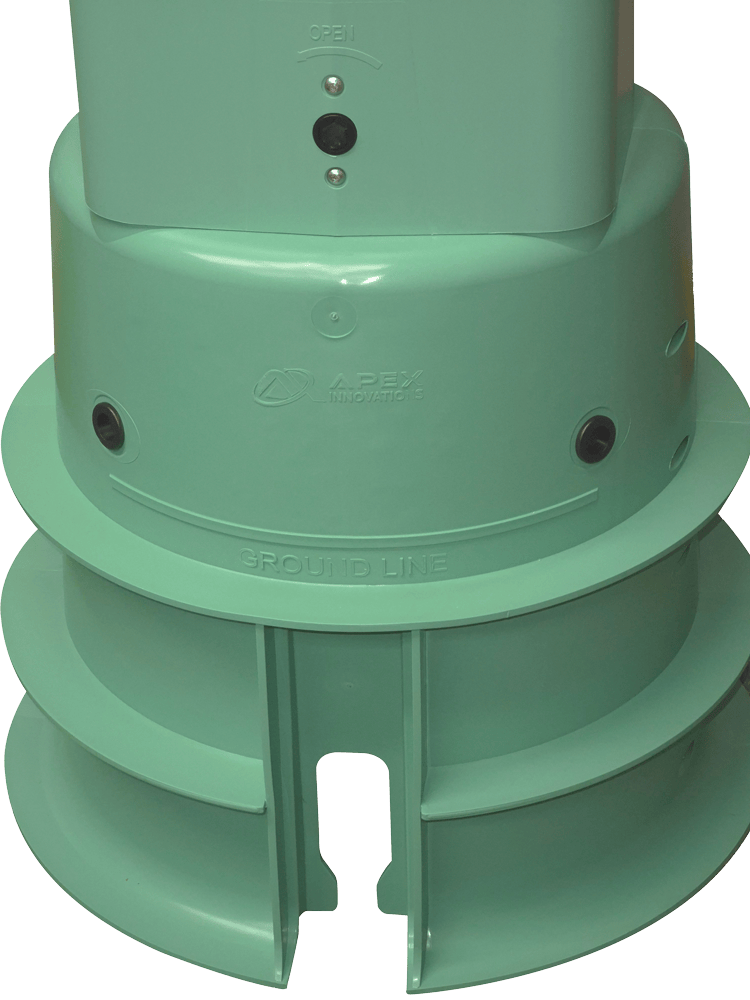

Base diameter
18"
Large Cable Inlet
(1” dia. max)
4
Drop Ports
(5/8" dia. max)
4
12 Fiber Ribbon Storage
72 feed side
Loose Tube Storage
24 feed side

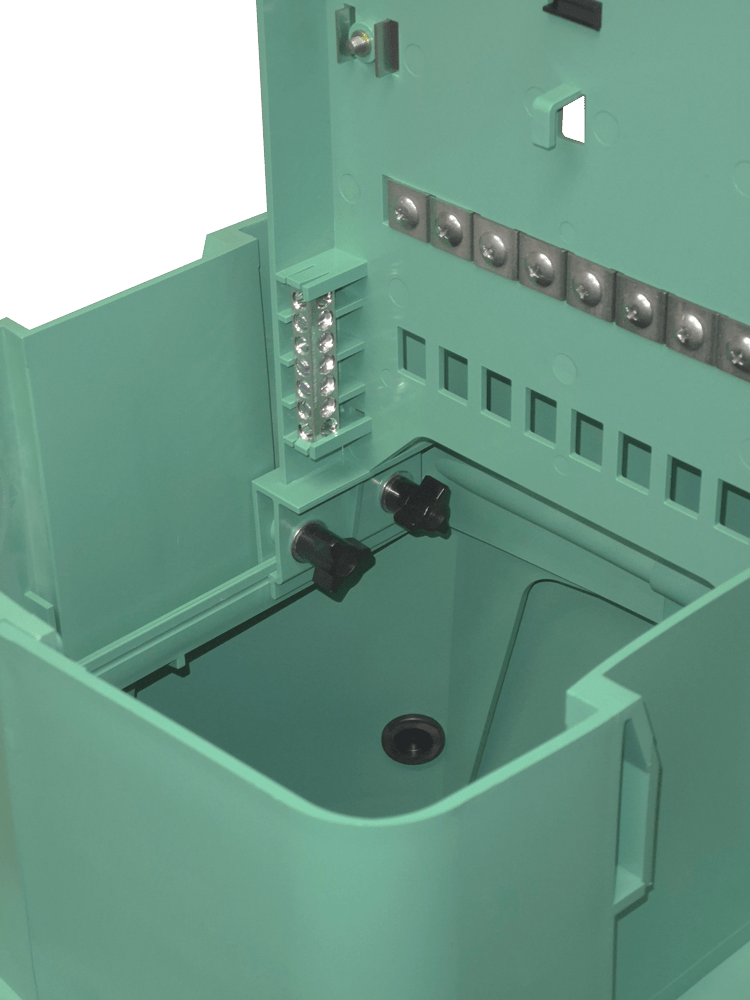

Splice Tray Size (max)
6.5" x 15"
12 fibers/tray
84
24 fibers/tray
168
48 fibers/tray
240
144 FOSC A/B Fiber Ribbon Tray
432

Downloads

APEX 100 DATASheet

Built to Certification Standards

Apex products meet RUS and Telcordia GR-13 standards. With ISO 9001 and ITAR-certified tooling and trusted molding partners, we ensure every component delivers quality, compliance and reliability.

Driving Speed to Market

From concept to launch in under 10 months, the Apex 100 proves how fast we move. With the capacity to produce 400,000 units annually and a full-service approach across design, manufacturing and distribution, we help you deliver better products more quickly.

Access to End-to-End Services

Our full-service model enables rapid adaptation to industry shifts, tight cost control and flexible solutions that keep you ahead.
